Product overview
Foundation Armor SX5000 WB is a water-based penetrating silane/siloxane concrete sealer marketed as a natural-look, breathable water repellent for concrete, brick, pavers, and natural stone. Unlike film-forming acrylic sealers, SX5000 WB is engineered to react inside the concrete pore structure to reduce water absorption while leaving the surface visually unchanged.

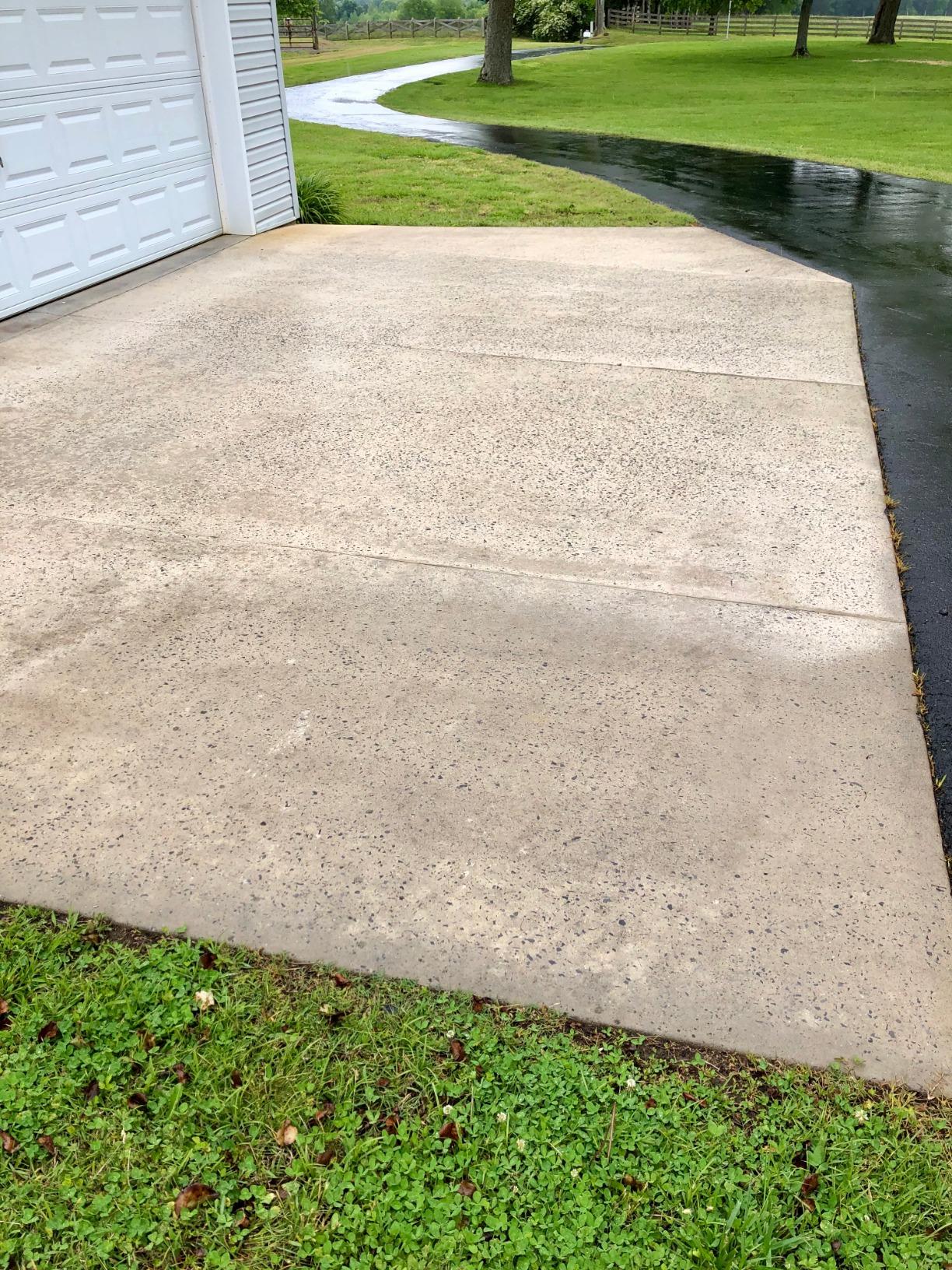

Typical intended applications include driveways, patios, paver installations, pool decks, concrete walkways, flagstone, and natural stone surfaces where the goal is protection without altering appearance. Because it is a penetrating sealer rather than a topical coating, SX5000 WB does not produce wet-look enhancement, gloss, or — under normal circumstances — a slippery finish.
At the time of this analysis, the product is sold in two sizes on Amazon — a 1-gallon version (ASIN B078XH3DS4, ~394 ratings) and a 5-gallon version (ASIN B01L2HTS7K, ~1,100 ratings) — plus approximately 1,166 ratings on Home Depot, giving a combined public rating pool of approximately 2,660 purchases across all three listings. This report is based on structured analysis of 207 detailed written reviews drawn from all three listings across all star levels, making it the most thoroughly documented independent analysis of this product available.
The 1-gallon and 5-gallon buyer profiles differ in a meaningful way. One-gallon buyers are typically tackling smaller projects — a single patio, a walkway, a chimney — at a $65 entry point. Five-gallon buyers are sealing full driveways, pool decks, and large concrete areas at $225 or more per bucket, often buying multiple buckets. The coverage complaints, cost exposure on failure, and no-return-freight risk hit the 5-gallon buyer significantly harder. Both profiles are represented in the 207-review analysed dataset.
How silane/siloxane penetrating sealers work
Silanes are small molecules that penetrate deep into the concrete pore network and chemically bond to the substrate. Siloxanes are larger molecules that anchor closer to the surface. Hybrid silane/siloxane formulations like SX5000 WB combine both: deep penetration for long-term protection and near-surface bonding for immediate hydrophobic performance.
The result is a sealed substrate that repels water from inside the pore structure rather than from a film on top of the surface. This is why penetrating sealers are typically breathable, non-slippery, and visually neutral — and why they can continue to provide protection even when visible surface beading begins to fade.
Whether that theoretical advantage holds up over multiple years of real outdoor exposure is the central question of this review. The answer, based on the full combined dataset: for many buyers in warm, dry climates on fresh porous concrete, yes. For a significant minority — particularly in cold, wet, or salt-exposed climates, on previously sealed or dense surfaces, or on white and light-colored stone — it does not.
Consumer review intelligence analysis
Structured analysis of 207 detailed written reviews across Amazon (both sizes) and Home Depot, all star levels. Not laboratory testing — documented customer experience patterns from the most thorough independent analysis of this product available.
| Platform / Listing | Ratings | Avg Rating | Detailed Reviews Analysed |
|---|---|---|---|
| Amazon — 1 gallon (B078XH3DS4) | ~394 | ~4.5/5 | 62 |
| Amazon — 5 gallon (B01L2HTS7K) | ~1,100 | ~4.3/5 | 62 |
| Home Depot (both sizes) | ~1,166 | 4.9/5 | 83 |
| Combined | ~2,660 | ~4.6/5 | 207 |
| Stars | Amazon | Home Depot | Total | % |
|---|---|---|---|---|
| 5★ | 62 | 25 | 87 | 42% |
| 4★ | 8 | 20 | 28 | 14% |
| 3★ | 10 | 17 | 27 | 13% |
| 2★ | 15 | 10 | 25 | 12% |
| 1★ | 29 | 11 | 40 | 19% |
| Total | 124 | 83 | 207 |
The Home Depot overall rating of 4.9/5 is notably higher than Amazon's distribution across both sizes. This likely reflects a different buyer profile — Home Depot customers tend to be more experienced DIYers and contractors who are more deliberate about surface preparation and application. The 5-gallon Amazon listing draws more professional buyers undertaking large projects, producing a slightly more critical review distribution than the 1-gallon listing. The Home Depot 4★ reviews in particular add nuance absent from Amazon: detailed accounts from methodical applicators who got good results but noted specific limitations.
What the positive reviews tell us — when this product works
Consistent success conditions across both platforms
Across 115 positive reviews (4★ and 5★) on Amazon and Home Depot, successful outcomes cluster around the same conditions regardless of platform. Fresh or previously unsealed concrete and pavers, warm dry climates, proper pump sprayer application, and careful two-coat technique with correct timing consistently produce the result the product promises: invisible protection, strong water beading, and no appearance change.
Home Depot 4★ and 5★ reviews add useful detail not as prominent on Amazon. Multiple buyers document successful sealing of brick facades that had been actively leaking water into buildings for years — a demanding vertical masonry application where the product's penetrating chemistry genuinely outperforms surface coatings. Several Home Depot buyers sealed chimneys, retaining walls, basement blocks, and seawalls involving sustained moisture pressure, and reported effective results. A buyer who sealed 75-year-old porous brick veneer confirmed the product worked well on that aged substrate, though at lower-than-advertised coverage rates.
The Home Depot 4★ reviews are particularly informative because they come from buyers who are generally satisfied but honest about limitations. Common 4★ themes: product works as expected for water repellency, but some areas absorbed unevenly; second coat timing is tricky without experience; coverage ran slightly low on porous surfaces; long-term durability still unknown.
The five things positive buyers consistently praise
Ease of application
The single most universal praise across all 207 reviews. A chemical-resistant pump sprayer, two coats, one afternoon. Battery-powered backpack sprayers are specifically recommended by several Home Depot reviewers for larger jobs. Water-based formula means no fumes, soap-and-water cleanup, and zero VOC.
Immediate and visible water beading
Documented with photos and video on both platforms. The hydrophobic effect is real and dramatic under favorable conditions — several buyers describe watching water bead and sheet off during the first rain, sometimes within hours of application.
Natural, invisible finish
No gloss, no color change, no slippery surface on appropriate substrates. Home Depot buyers specifically praise this for brick and masonry applications where a natural appearance is non-negotiable — commercial stone installations, church buildings, and residential brick facades all appear in the positive set.
Versatility across substrates
Concrete driveways, aggregate pads, paver patios, flagstone, bluestone, travertine, pool decks, brick chimneys, cinder block walls, seawalls, retaining walls, basement floors, garage slabs, and outdoor kitchens all appear in positive reviews across both platforms.
Repeat purchase loyalty
Multiple buyers on both platforms explicitly document returning to buy more for new projects after successful first applications. This pattern of repeat purchase from experienced users carries substantially more weight than first-impression reviews.
The “time will tell” pattern
Even among positive reviews on both platforms, the same qualifier recurs: “time will tell,” “will update,” “just applied,” “only been down a month,” “hoping it holds up.” The overwhelming majority of positive reviews are written weeks or months after application. The genuinely multi-year positive reports are rare on both platforms and are the most valuable data points in the entire combined set.
The seven documented failure patterns
1. Blotchy, uneven, or darkened appearance — the #1 failure mode (both platforms)
This remains the dominant complaint across all 207 analysed reviews, appearing on both Amazon and Home Depot across multiple years and climates. The same outcome is described repeatedly: dark spots, streaking, light/dark patchwork, or a mottled appearance that does not resolve over weeks or months, even from buyers who followed the instructions carefully.
A notable Home Depot account documents an applicator who covered 3,000 sq ft of concrete in the evening as recommended — and ended up with 3,000 sq ft of brown, blotchy, discolored concrete. Another Home Depot reviewer documented dark spots forming specifically along hairline cracks where product pooled rather than penetrated. An Amazon reviewer followed the wet-on-wet instruction by applying the second coat within two minutes of the first — and was told by customer support that 15 minutes should have elapsed. That guidance appeared only on the back of a secondary instruction sheet, not the main instructions.
The instruction ambiguity is confirmed independently by a 5★ Amazon reviewer and a 4★ Home Depot reviewer — establishing it as a systemic issue, not isolated user error. The manufacturer's proposed remediation is chemical stripping followed by reapplication — expensive, labor-intensive, and not documented as successfully resolving the problem in any of the 207 analysed reviews.
2. Yellowing on white and light-colored surfaces — documented on Home Depot
This failure mode is absent from the Amazon critical dataset but appears in multiple Home Depot reviews. A buyer who applied SX5000 WB to white koni brick for a kitchen backsplash documents clear yellowing under different lighting temperatures — directly contradicting the manufacturer's claim that the product will not yellow. She performed a test sample first, but the yellowing was not apparent on the small sample and only became visible on the complete vertical installation.
A separate Home Depot 3★ reviewer confirms a delayed yellowing pattern: initial satisfaction in year one followed by visible yellowing in year two. This delayed onset means buyers cannot rely on short-term testing to rule out the problem. For any buyer sealing white concrete, light-colored pavers, white or cream brick, or any substrate where color fidelity is critical, this is a documented and unacknowledged risk.
3. Slippery surface on smooth or dense substrates
A Home Depot reviewer applied SX5000 WB to a garage floor and found the result dangerously slippery after drying, requiring washing with sand and dish soap to restore safe traction. This adds to the Amazon account of a marble paver application that produced an ice-rink surface. Both incidents involve smooth, dense, or polished substrates that absorb very little of a penetrating sealer. When product cannot penetrate, it can pool and form a surface film — and that film can be slippery. This directly contradicts the product's non-slip marketing claim and represents a documented safety risk on the wrong substrate.
4. Long-term durability falls short of the 7–10 year claim
Multiple timestamped multi-year reviews across both platforms document premature failure. An Ohio Amazon reviewer reports complete loss of water repellency before year two. An Amazon buyer who applied 10 gallons in fall 2022 documents visible salt damage by December 2024. A Home Depot 3★ reviewer documents yellowing emerging in year two after a satisfactory year one. An Amazon reviewer who spent approximately $500 in 2022 reports the product essentially gone by 2024. The documented multi-year positive evidence on both platforms is thin — concentrated in warm-climate or sheltered applications. Cold-climate, salt-exposed results are almost entirely absent from the confirmed multi-year positive record.
5. Coverage rate lower than advertised
Documented consistently on both platforms and across both sizes. A Home Depot reviewer covering 75-year-old porous brick veneer got 80–85 sq ft per gallon against an expected 100–125 sq ft. An Amazon reviewer got approximately 125 sq ft per gallon against an advertised 140–300 sq ft range. The coverage gap is most costly for 5-gallon buyers: at $225 per bucket, a large driveway project requiring two or three buckets can easily run $450–$675 before any remediation. Return freight on bulk orders is not covered by the manufacturer, creating significant financial risk for buyers who ordered based on the stated coverage range.
6. Does not penetrate smooth or non-porous surfaces
A detailed Home Depot review of a brand-new machine-troweled pigmented garage slab documents the product behaving "like water" — absorbing almost nothing, requiring less than half a gallon for a 550 sq ft slab, and leaving effectively no protection. A Home Depot 3★ reviewer confirms the product "seemed to lay on top and did not penetrate" on a well-prepared 60°F floor. This is technically expected behavior for a penetrating sealer on a low-porosity surface, but it is not clearly communicated in product marketing.
7. Sprayer compatibility and product quality issues
Two Home Depot reviewers specifically warn that standard garden sprayers are incompatible — one found their sprayer eroded from the inside. A chemical-resistant pump sprayer is required but not prominently communicated at point of sale. Additionally, one bulk buyer found large clumps of congealed product in a 5-gallon bucket, making a portion of the container unusable — raising storage and shelf-life questions for buyers purchasing bulk quantities.
Pros & Cons
Pros
- + Most universally praised ease of application across all 207 analysed reviews
- + Breathable penetrating protection — no trapped moisture, no peeling risk
- + Natural, non-glossy, invisible finish on fresh porous concrete when applied correctly
- + Strong and immediate water repellency under favorable conditions
- + Non-slippery on appropriate substrates (broom finish, aggregate, porous brick)
- + Versatile: concrete, brick, pavers, natural stone, masonry, chimneys, retaining walls
- + Easy water-based cleanup, no harmful fumes, zero VOC
- + Responsive customer support documented across both platforms
- + Strong repeat-purchase loyalty among experienced users
- + Most publicly documented silane/siloxane in the US market — ~2,660 combined ratings across Amazon (both sizes) and Home Depot
Cons
- − Blotchy, uneven, or darkened appearance is the most documented outcome in critical reviews on both platforms
- − Yellowing documented on white and light-colored surfaces — not disclosed in product marketing
- − Slippery finish documented on smooth, troweled, or dense substrates
- − Durability claims of 7–10 years not supported by documented multi-year evidence in cold climates
- − Application instruction ambiguity on wet-on-wet timing is a systemic failure source on both platforms
- − Not suitable for dense stone, marble, white or light brick, clay brick, painted, or polished surfaces
- − Does not stabilize paver joint sand — a recurring expectation mismatch on both platforms
- − Coverage consistently lower than advertised on porous surfaces
- − Standard garden sprayers incompatible — chemical-resistant sprayer required but not prominently stated
- − Product quality inconsistency (clumping) documented in bulk 5-gallon purchases
Ideal use cases
Most likely to perform as expected when:
- · Applied to fresh (under 3 years old), previously unsealed broom-finish, aggregate, or paver surfaces
- · Applied in warm, dry conditions (60–75°F, no rain for 48 hours before and after)
- · Applied with a chemical-resistant professional pump sprayer or battery-powered backpack sprayer
- · The second coat is applied approximately 10–15 minutes after the first — wet but not puddled
- · Any pooling is immediately rolled out or blown off
- · The surface has been pressure-washed and fully dried for 24–48 hours minimum
- · The substrate is not white, light-colored, polished, painted, or machine-troweled smooth
Who should look elsewhere
- · Homeowners with previously sealed concrete, even if sealed years ago
- · Anyone in a cold climate with regular freeze/thaw cycling or salt/de-icing exposure
- · Buyers sealing white or light-colored brick, dense stone, marble, fired brick, clay brick, or painted surfaces
- · Anyone with a smooth, machine-troweled, or highly polished concrete slab
- · Anyone expecting paver joint sand stabilization
- · Buyers who require documented multi-year outdoor proof before committing to a large project
- · Large-project buyers (5-gallon) who cannot absorb the financial risk of a blotching or yellowing outcome
The long-term proof gap
The most important finding from the combined 207-review analysis is not any single complaint category. It is what is consistently absent from both datasets: documented, photographic, multi-year outdoor performance evidence on cold-climate, salt-exposed concrete from buyers who applied the product 3+ years ago and returned with proof it held.
This is a structural problem across the entire concrete sealer industry. Products are sold on 7–10 year durability claims that are almost never backed by independent, controlled, long-term outdoor exposure data. The positive reviews of SX5000 WB are genuine — but they are overwhelmingly short-term. The critical reviews that carry multi-year timestamps are more likely to document failure, yellowing, or decay than continued success.
Across 207 detailed reviews and a combined rating pool of approximately 2,660 purchases across Amazon (both sizes) and Home Depot, not a single buyer has returned to document continuous, photographed performance on the same surface across three winters with a side-by-side unsealed control for comparison. For a contrast, see our Nanoprotect 34-month field test.
Final verdict
Foundation Armor SX5000 WB is the most widely purchased and independently reviewed penetrating silane/siloxane concrete sealer in the US market. With approximately 2,660 combined ratings across Amazon (1-gallon and 5-gallon) and Home Depot, and 207 detailed written reviews analysed for this report, the scale of adoption is real — and the majority positive experience is genuine. Real buyers across hundreds of projects get real results: easy application, effective water repellency, and an invisible finish on appropriate surfaces under favorable conditions.
The combined 207-review analysis reveals a product with a narrow operating window and a demanding set of conditions for consistent results. When those conditions are met — fresh porous concrete, warm dry climate, chemical-resistant sprayer, correct coat timing — the product delivers on its core promise. When they are not — which happens more often than the marketing implies — the failure is visible, expensive, and difficult to remediate.
The blotching and darkening problem is not a rare edge case. It is the most consistently documented outcome in critical reviews across both platforms. The yellowing risk on light surfaces is real and not disclosed. The slipperiness risk on smooth substrates is documented on both platforms. The 7–10 year claim remains unsupported by the available multi-year evidence on either platform.
For buyers in warm climates with fresh porous concrete applying carefully under ideal conditions, SX5000 WB remains a solid choice in its category. For buyers in cold climates, on older or previously sealed surfaces, on light-colored or smooth substrates, or where a costly cosmetic failure would be unacceptable, the risk profile documented across 207 reviews deserves serious consideration before committing.
Where it falls short of Nanoprotect: Foundation Armor SX5000 WB's core limitation is the one thing no review — across 2,660 ratings or 207 detailed accounts — can manufacture: time. Even its most enthusiastic buyers write “time will tell” because they genuinely don't know yet. Nanoprotect is the only concrete sealer in this ranking backed by a continuously documented, photographed, 34-month outdoor field test across three full winters, freeze/thaw cycles, biological seasons, and a controlled split-surface comparison that shows exactly what sealed versus unsealed concrete looks like after nearly three years of identical real-world exposure. SX5000 WB may perform for 7–10 years on the right surface in the right climate — but that claim is unverified across 2,660 real-world purchases. Nanoprotect's performance through 34 months is not a claim. It is documented evidence.
Frequently asked questions
›How long does Foundation Armor SX5000 WB actually last?
Based on our 207-review combined analysis, documented real-world performance in warm climates on fresh concrete ranges from 2–5 years among positive long-term reviewers. In cold or salt-exposed climates, multiple buyers on both Amazon and Home Depot report failure within 1–3 years. The advertised 7–10 year claim is not consistently supported by the documented customer record on either platform or either size.
›Is SX5000 WB breathable?
Yes. It is a penetrating silane/siloxane that reacts inside the pore structure without forming a surface film — inherently breathable, with no peeling or blistering complaints in the 207-review combined dataset.
›Does SX5000 WB darken or yellow concrete?
It is designed not to, and most positive reviewers confirm an invisible result on standard gray concrete. However, blotching and darkening is the most documented complaint in the critical review set, and yellowing on white and light-colored surfaces is documented in multiple Home Depot reviews — including as a delayed reaction appearing in year two. Always test on a small inconspicuous area first, particularly on any light-colored or decorative substrate.
›Is SX5000 WB non-slippery?
On broom-finish or aggregate concrete, yes — confirmed by multiple pool deck and patio reviews across both platforms. On smooth, troweled, or dense substrates, a slippery outcome has been documented on both platforms. Confirm substrate porosity before applying on any surface where traction is critical.
›Does SX5000 WB seal paver joints?
No. It is a water repellent, not a paver sand binder. For joint stabilization, polymeric sand or a dedicated joint-locking product is the appropriate category. This is a recurring expectation mismatch documented across both platforms.
›What sprayer should I use?
A chemical-resistant 1–2 gallon pump sprayer or battery-powered backpack sprayer. Standard garden sprayers can be damaged or destroyed by this product — documented in multiple Home Depot reviews. This compatibility requirement is not prominently communicated at point of sale.
›What causes the blotchy appearance?
Based on 207 reviews: prior sealer residue on older concrete, variable porosity across the slab, applying the second coat without the correct 10–15 minute interval, applying to a surface not fully dry, and differential drying between sun and shade. Application on smooth, dense, or non-porous concrete is also a documented contributing factor.
›Is the 5-gallon version better value than the 1-gallon?
Per fluid ounce the 5-gallon is cheaper ($0.35 vs $0.51), but the financial risk is substantially higher. A blotching or coverage shortfall outcome on a 5-gallon project ($225+ per bucket) is far more costly to remediate than a 1-gallon project. First-time users are better served by starting with the 1-gallon on a small test area before committing to bulk quantities.
›Is there a warranty?
No warranty support was documented in any of the 207 analysed reviews. Customer support — praised for helpfulness in technical guidance across both platforms — offered remediation advice in failure cases but no product replacement or documented refund.
